Desanders with Desilter

Desanders are used to separate sand from drilling muds. During drilling and excavating operation drilling mud (bentonite) mixes with polluting matters such as; sands and clays. When drilling operation is finished, drilling mud must be treated and cleaned by separating these matters from mixture. Owing to that treat clean mud can be used for next operation and drilling mud being ready for concreting.

The first treatment comes true on a steel plate screen where 8mm matters separated. Second treatment comes true to pumping the mud inside hydrocyclone. Here 50 micron particles are separated.
SKC Makina produce three types of desanders SKD2200, SKD4400 and SKD840 which are named according to their capacity.

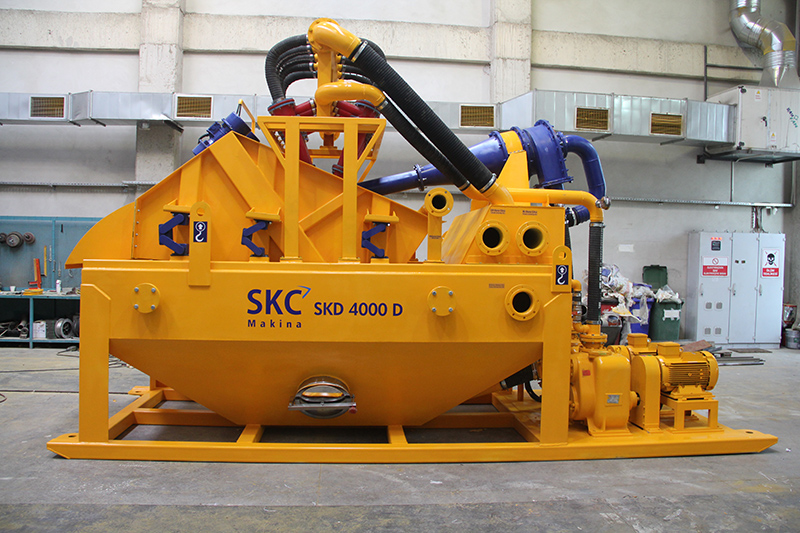

SKC Makina also produce double cycloning desanders which is named SKD 4400D, desander with desilter. First cyclining is same with desander’s first and second treatment. In that operation 50 micron particles are separated. For the second cycloning mud is pumped to little hydrocyclones. After that operation separation will be 20-30 microns.

Model/Type SKD 4000D
Pompa Kapasitesi1
Pump Capacity1
m³/h 130
Pompa Kapasitesi2
Pump Capacity2
m³/h 110
mm 1xØ400 - 10xØ100
Toplam Güç
Total Power
KW/V/Hz 22+18,5/380/50
Eleme Çapı Tek Elemede
Cut Diameter Simple Cycloning
D50 µm 50
Eleme Çapı Çift Elemede
Cut Diameter Double Cycloning
D50 µm 20-30
Eleme Öncesi Kum Oranı
Sand Content Before Treatment
% ~10
Eleme Sonrası Kum Oranı
Sand Content After Treatment
% ~2
mm 5700 x 2200 x 3320
kg ~4000
